How to integrate HoneyHive with Salesforce Agentforce

Salesforce Agentforce does not push OpenTelemetry to an external endpoint. The beta Session Trace OTel API returns one agent session as OTLP JSON. A poller fetches that payload and POSTs it to HoneyHive. You don’t need a HoneyHive SDK in the agent. Start with the salesforce-agentforce-cookbook poller. This page walks through Salesforce setup and what you will see in HoneyHive.

The Session Trace OTel API is in beta. The cookbook includes a poller you can run as written.

Prerequisites

Salesforce org with Agentforce and Data 360 (Developer Edition works)
Agentforce Session Tracing and Audit and Feedback enabled
An External Client App (ECA) for OAuth
Python 3.10+ with uv or pip to install requirements.txt (python-dotenv, requests)
A HoneyHive project API key from Settings > Project > API Keys

How it works

Agentforce writes turns, LLM calls, and actions into Data 360.
The poller discovers recent session IDs and fetches each session from Salesforce’s Session Trace OTel API.
It stamps public session attributes, rewrites Salesforce I/O onto GenAI JSON strings, then POSTs the OTLP JSON to HoneyHive.
Run it once, or keep it looping on a schedule.

Beta limits

One session ID per request
Salesforce documents sessions started within the last 72 hours only
Data 360 required
Connect REST API rate limits apply

Enable tracing in Salesforce

Turn on Data 360

Turn on Data 360 from Setup > Data Cloud Setup Home and wait until it shows as live.

Confirm the Einstein Audit dataspace

Open Setup > Einstein Audit, Analytics, and Monitoring Setup. Confirm a dataspace is selected (often default). Without this, the OTel API returns No selected dataspace for Einstein Audit.

Turn on the tracing toggles

Turn on:

Agentforce Session Tracing (data model provisioning can take about 10 minutes; see Export Agentforce Session Tracing Data)
Audit and Feedback (Salesforce may take a few hours before data appears; see Set Up Einstein Generative AI Audit and Feedback)
Agent Platform Tracing if listed

Refresh the Agentforce data streams

In Data Cloud > Data Streams, make sure the Agentforce streams are Active: AiAgentSession, AiAgentInteraction, AiAgentInteractionMessage, and AiAgentInteractionStep. Run a refresh on each. Until you do, session rows can exist in Data 360 while the OTel API still returns 404 for those sessions.

Activate the agent

Activate (publish) the agent. Draft-only preview sessions often do not show up in Session Tracing.

Agentforce must also be enabled in the org. See Get Started with Agentforce.

Create an External Client App

In Setup > External Client Apps (or App Manager):

Select the API scope

For client credentials, select Manage user data via APIs (api). Using only Full access (full) can fail with invalid_grant: no valid scopes defined.

Enable Client Credentials Flow

Enable Client Credentials Flow and set Run As to a user with Data Cloud access and Einstein Audit read access (Setup > Einstein Audit, Analytics, and Monitoring Setup, the same screen as Enable tracing in Salesforce step 2). These are separate permissions: a user with only Data Cloud access passes discovery and then fails every OTel fetch with 403 INSUFFICIENT_ACCESS.

Copy the credentials

Copy the consumer key and secret into env vars. Do not commit them. Viewing consumer details may require email verification. Copy the My Domain login host (https://<domain>.my.salesforce.com) into SALESFORCE_INSTANCE_URL, not the Lightning host or an Experience Cloud domain.

See Salesforce OAuth 2.0 auth and the OTel API auth notes.

Run the poller

Clone the cookbook, install requirements.txt, copy poller.env.example to poller.env, and fill in your HoneyHive key, data plane URL, My Domain host, and External Client App credentials. The script loads poller.env from this directory. Have at least one finished conversation with the activated agent, then:

git clone https://github.com/honeyhiveai/cookbook.git
cd cookbook/salesforce-agentforce-cookbook
uv venv
source .venv/bin/activate
uv pip install -r requirements.txt
cp poller.env.example poller.env
python3 poll_agentforce.py

What HoneyHive receives

One Agentforce conversation becomes one HoneyHive session. Open Traces > Sessions and find the session named after your agent. HoneyHive uses a derived session UUID. Reusing the Salesforce session id opens a child turn instead of the conversation. Salesforce Session Trace exports the full Agentforce graph, not only the user and assistant turns. A typical conversation has these events:

Event	What it is
Top-level `NOT_SET`, `off_topic`, `GeneralFAQ`, and similar	One user turn. The name is the topic Agentforce picked. `NOT_SET` is the greeting before a topic is chosen.
`__state_update_action__`	Writes session variables. No user I/O in the payload.
`pre_orchestration.guardrail`	Safety / router classifier that runs before the topic agent.
`agent_router`	Picks the topic (`off_topic`, `GeneralFAQ`, and similar).
Nested topic name (`off_topic`, `GeneralFAQ`, …)	The topic-agent model call.
`InstructionAdherence`	Post-response instruction and task check.

Names like off_topic and GeneralFAQ are Salesforce topic names, not HoneyHive features. Salesforce stores turn text on agent.messages.* keys and step I/O in a kvlist. The poller rewrites those onto gen_ai.input.messages and gen_ai.output.messages. It also stamps gen_ai.operation.name (chat, invoke_agent, execute_tool) so HoneyHive classifies the tree. See Framework Attribute Mapping. A typical session looks like this:

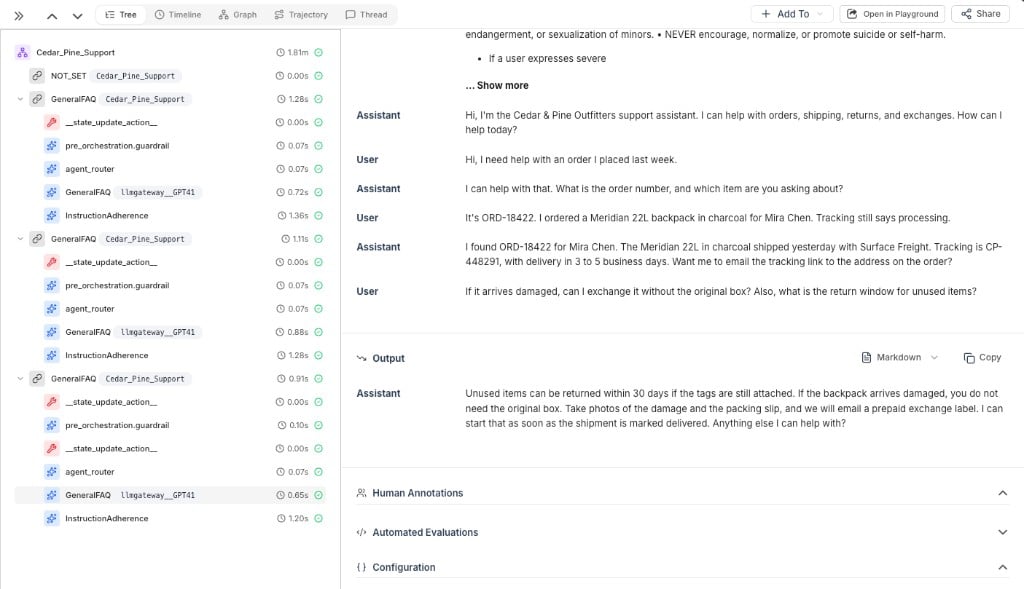

HoneyHive Traces view of a Cedar Pine Support Agentforce session, with GeneralFAQ, agent_router, pre_orchestration.guardrail, and InstructionAdherence spans, and the selected turn's user and assistant messages in the conversation panel — An exported Agentforce session in HoneyHive Traces. The tree shows topic turns such as GeneralFAQ with router, guardrail, and instruction-adherence children. The selected turn shows the user and assistant messages.

Test_Employee_Agent_2 (session)
├── NOT_SET
├── off_topic
│   ├── __state_update_action__
│   ├── pre_orchestration.guardrail
│   ├── agent_router
│   ├── off_topic
│   └── InstructionAdherence
├── GeneralFAQ
│   ├── __state_update_action__
│   ├── pre_orchestration.guardrail
│   ├── agent_router
│   ├── GeneralFAQ
│   └── InstructionAdherence
└── off_topic
    ├── pre_orchestration.guardrail
    ├── agent_router
    ├── off_topic
    └── InstructionAdherence

If the export looks wrong

If a session is missing, confirm the poller POSTed to {HH_API_URL}/opentelemetry/v1/traces and that the API key belongs to this project.
